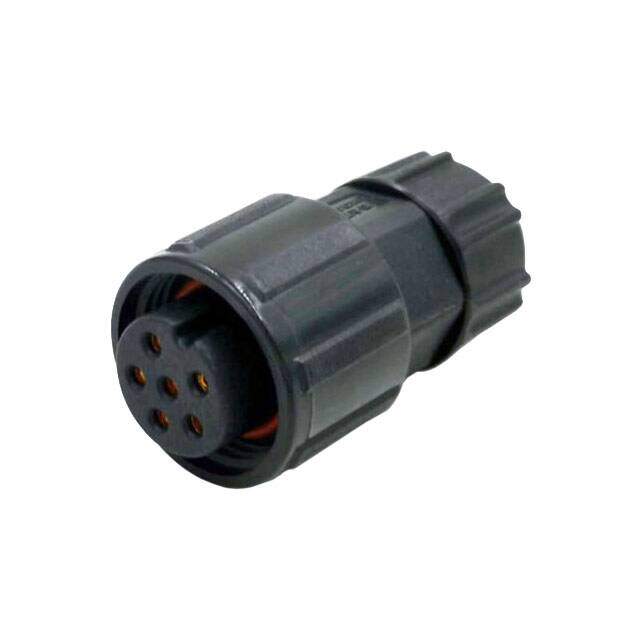

23006211-02
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
MIDDLE SERIES 6PIN MALE PLUG WIT
PDF
/
Buying Options
Total Price: USD $12.22
Unit Price: USD $12.2232
≥1 USD $12.2232
≥10 USD $10.83192
≥100 USD $8.610237
≥500 USD $7.388146
Inventory: 281
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass, Phosphor Bronze
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -45°C~105°C
Packaging Bulk
Series Middle
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 6
Color Black
Applications Communication Systems, Industrial, Lighting, Marine
Voltage - Rated 125V
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 10A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Cable Opening 0.256 ~ 0.374 (6.50mm ~ 9.50mm)
Compliance
RoHS Status ROHS3 Compliant
