23003615-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

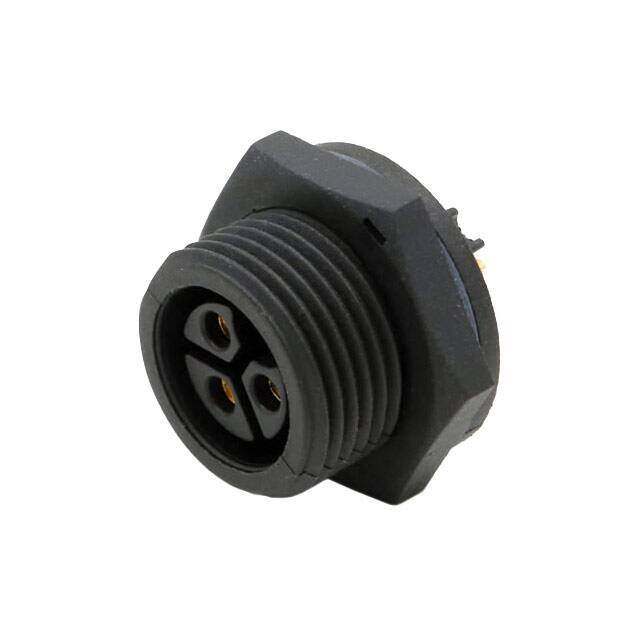

MIDDLE SERIES 3PIN FRONT PANEL M
PDF
/
Buying Options
Total Price: USD $10.75
Unit Price: USD $10.74722
≥1 USD $10.74722
≥10 USD $10.13889
Inventory: 404
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass, Phosphor Bronze
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Shell Material Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -45°C~105°C
Packaging Bulk
Series Middle
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 3
Color Black
Applications Communication Systems, Industrial, Lighting, Marine
Voltage - Rated 300V
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 20A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
