23003111-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

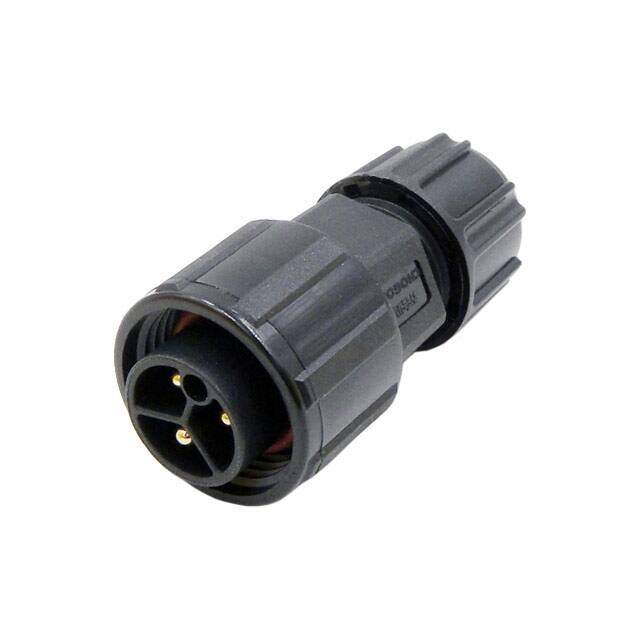

MIDDLE SERIES 3PIN MALE PLUG WIT
PDF
/
Buying Options
Total Price: USD $6.71
Unit Price: USD $6.7144
≥1 USD $6.7144
≥10 USD $6.03944
≥100 USD $5.689728
≥500 USD $5.543824
≥1000 USD $5.39792
≥3000 USD $5.137018
Inventory: 203
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass, Phosphor Bronze
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -45°C~105°C
Packaging Bulk
Series Middle
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 3
Color Black
Applications Communication Systems, Industrial, Lighting, Marine
Voltage - Rated 300V
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 20A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Cable Opening 0.138 ~ 0.256 (3.50mm ~ 6.50mm)
Compliance
RoHS Status ROHS3 Compliant
