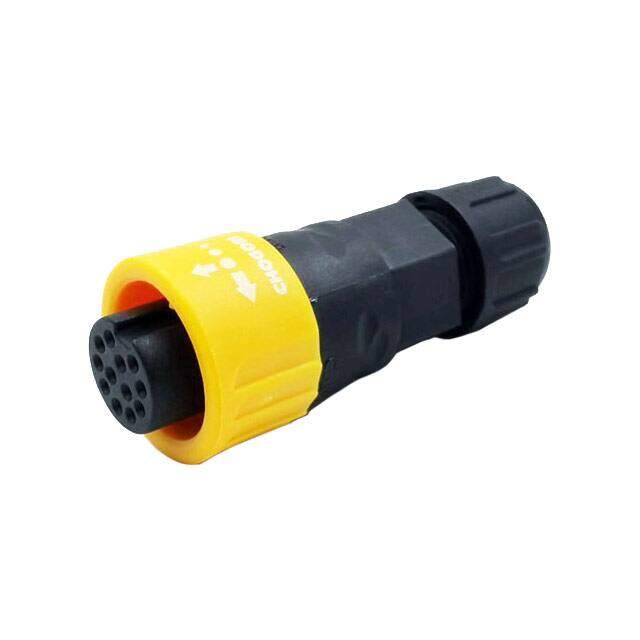

22012231-01 image
Favorite
22012231-01 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description STANDARD SERIES 12PIN MALE PLUG
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Cable Opening 0.138 ~ 0.268 (3.50mm ~ 6.80mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 2A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 30V
Applications Communication Systems, Industrial, Lighting, Marine
Color Black, Yellow
Number of Positions 12
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series Standard
Packaging Bulk
Operating Temperature -45°C~105°C

Physical

Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Polyamide (PA66), Nylon 6/6
Mounting Type Free Hanging (In-Line)
Contact Material Brass, Phosphor Bronze

Supply Chain

Factory Lead Time 7 Weeks
