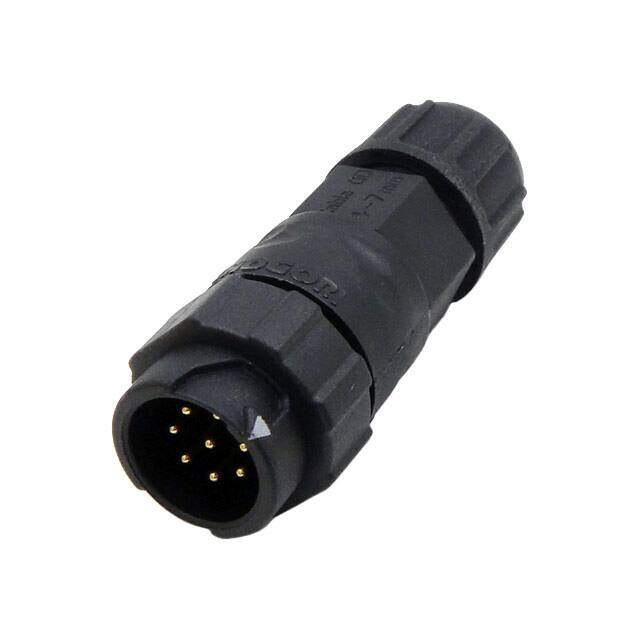

22008331-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
STANDARD SERIES 8PIN FEMALE PLUG
PDF
/
Buying Options
Total Price: USD $7.77
Unit Price: USD $7.7704
≥1 USD $7.7704
≥10 USD $6.9916
≥100 USD $5.572794
≥500 USD $4.627093
Inventory: 65
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass, Phosphor Bronze
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -45°C~105°C
Packaging Bulk
Series Standard
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 8
Color Black
Applications Communication Systems, Industrial, Lighting, Marine
Voltage - Rated 60V
Fastening Type Push-Twist
Contact Finish - Mating Gold
Current Rating (Amps) 5A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Cable Opening 0.138 ~ 0.268 (3.50mm ~ 6.80mm)
Compliance
RoHS Status ROHS3 Compliant
