22006231-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

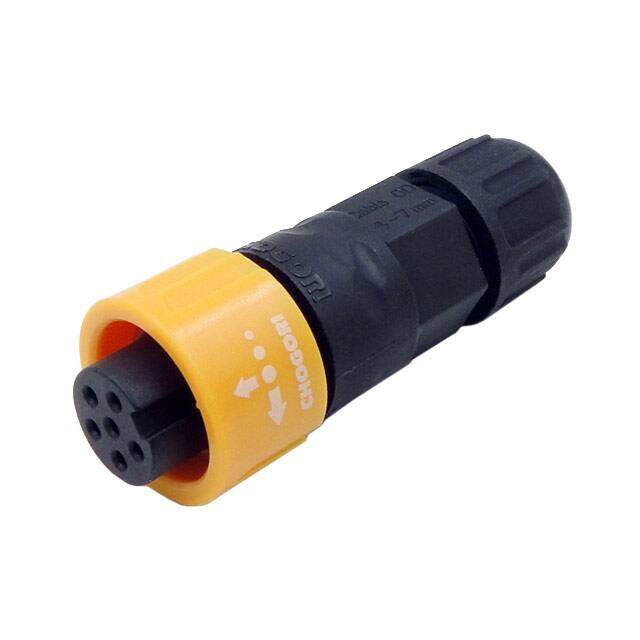

STANDARD SERIES 6PIN MALE PLUG W
PDF
/
Buying Options
Total Price: USD $9.97
Unit Price: USD $9.9704
≥1 USD $9.9704
≥10 USD $8.83872
≥100 USD $7.025955
≥500 USD $6.02873
Inventory: 381
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Cable Opening 0.138 ~ 0.268 (3.50mm ~ 6.80mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 5A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 60V
Applications Communication Systems, Industrial, Lighting, Marine
Color Black, Yellow
Number of Positions 6
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series Standard
Packaging Bulk
Operating Temperature -45°C~105°C
Physical
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Polyamide (PA66), Nylon 6/6
Mounting Type Free Hanging (In-Line)
Contact Material Brass, Phosphor Bronze
Supply Chain
Factory Lead Time 7 Weeks
