22005131-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

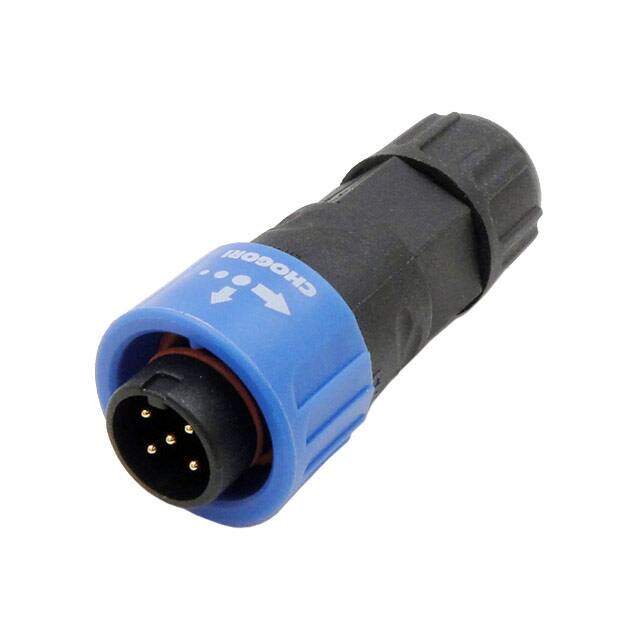

STANDARD SERIES 5PIN MALE PLUG W
PDF
/
Buying Options
Total Price: USD $5.56
Unit Price: USD $5.5616
≥1 USD $5.5616
≥10 USD $5.00544
≥100 USD $4.71504
≥500 USD $4.594128
≥1000 USD $4.473216
≥3000 USD $4.257018
Inventory: 486
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass, Phosphor Bronze
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -45°C~105°C
Packaging Bulk
Series Standard
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 5
Color Black, Blue
Applications Communication Systems, Industrial, Lighting, Marine
Voltage - Rated 60V
Fastening Type Push-Twist
Contact Finish - Mating Gold
Current Rating (Amps) 5A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Cable Opening 0.138 ~ 0.268 (3.50mm ~ 6.80mm)
Compliance
RoHS Status ROHS3 Compliant
