Package /
Category Connectors, Interconnects / Circular Connectors

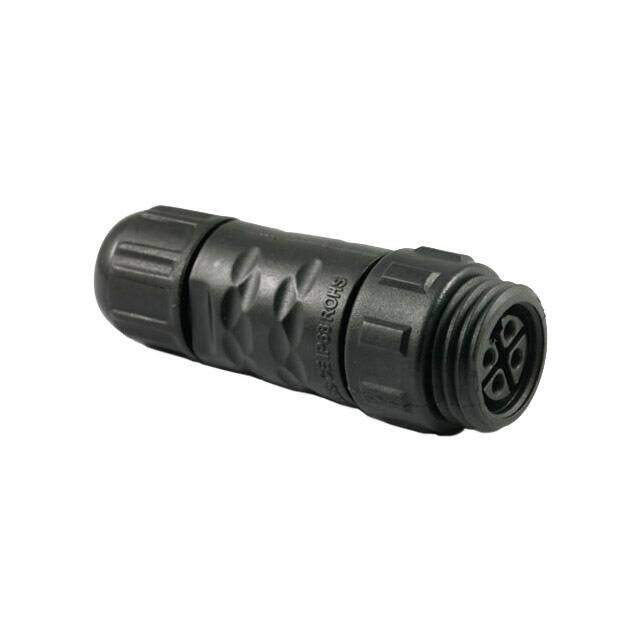

Description STANDARD SERIES 4PIN FEMALE PLUG
PDF
/
Buying Options
Total Price: USD $6.08
Unit Price: USD $6.0808
≥1 USD $6.0808
≥10 USD $5.47096
≥100 USD $5.153632
≥500 USD $5.021456
≥1000 USD $4.889368
≥3000 USD $4.653018
Inventory: 481
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Brass, Phosphor Bronze
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6

Technical

Operating Temperature -45°C~105°C
Packaging Bulk
Series Standard
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Black
Applications Communication Systems, Industrial, Lighting, Marine
Voltage - Rated 125V
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 10A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Cable Opening 0.138 ~ 0.268 (3.50mm ~ 6.80mm)

Compliance

RoHS Status ROHS3 Compliant
