22003411-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

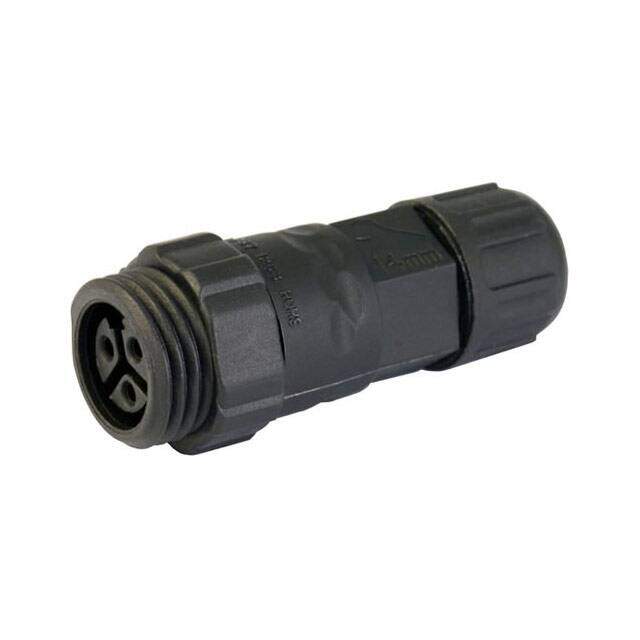

Circular Connector
PDF
/
Buying Options
Total Price: USD $7.36
Unit Price: USD $7.3568
≥1 USD $7.3568
≥10 USD $6.62376
≥100 USD $6.239552
≥500 USD $6.079392
≥1000 USD $5.919408
≥3000 USD $5.279472
Inventory: 147
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Cable Opening 0.138 ~ 0.268 (3.50mm ~ 6.80mm)
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 10A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 300V
Applications Communication Systems, Industrial, Lighting, Marine
Color Black
Number of Positions 3
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series Standard
Packaging Bulk
Operating Temperature -45°C~105°C
Physical
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Polyamide (PA66), Nylon 6/6
Mounting Type Free Hanging (In-Line)
Contact Material Brass, Phosphor Bronze
Supply Chain
Factory Lead Time 7 Weeks
