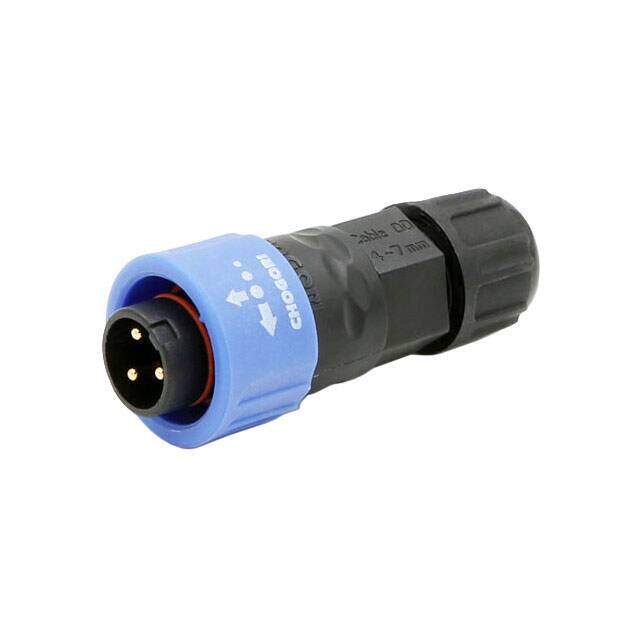

22003131-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Standard ROHS3Compliant Keyed IP67 - Dust Tight Waterproof Circular Connector -45C~105C 10A 300V
PDF
/
Buying Options
Total Price: USD $7.36
Unit Price: USD $7.3568
≥1 USD $7.3568
≥10 USD $6.65368
≥100 USD $5.212803
≥500 USD $4.292904
Inventory: 393
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Cable Opening 0.138 ~ 0.268 (3.50mm ~ 6.80mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 10A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 300V
Applications Communication Systems, Industrial, Lighting, Marine
Color Black, Blue
Number of Positions 3
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series Standard
Packaging Bulk
Operating Temperature -45°C~105°C
Physical
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Polyamide (PA66), Nylon 6/6
Mounting Type Free Hanging (In-Line)
Contact Material Brass, Phosphor Bronze
Supply Chain
Factory Lead Time 7 Weeks
