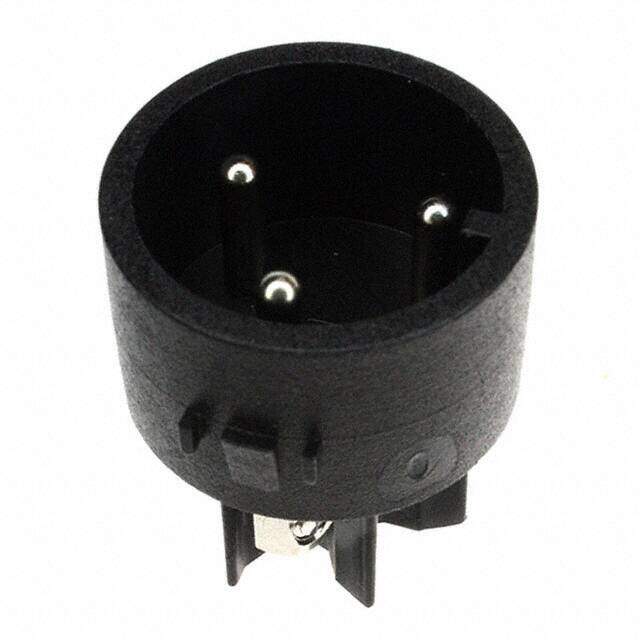

SA3230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN TERM INSERT 3POS PIN SCREW
PDF
/
Buying Options
Total Price: USD $10.82
Unit Price: USD $10.8152
≥1 USD $10.8152
≥10 USD $9.58408
≥100 USD $9.215712
≥500 USD $8.847168
≥1000 USD $8.3556
≥3000 USD $7.618336
Inventory: 111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Brass
Number of Pins 3
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2003
Series Buccaneer?, Mini
Feature Insert Only, Requires Shell
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Connector Type Insert, Male Pins
Number of Positions 3 (2 Power + PE)
Voltage - Rated 250VAC
Additional Feature UL 94V-0
Contact Finish - Mating Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Current Rating (Amps) 10A
Total Number of Contacts 3
Orientation Keyed
Shielding Unshielded
Voltage - Rated AC 250V
Contact Resistance 5mOhm
Insulation Resistance 10 TΩ
Body/Shell Style PLUG
Coupling Type SNAP
Breakdown Voltage 2kV
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
