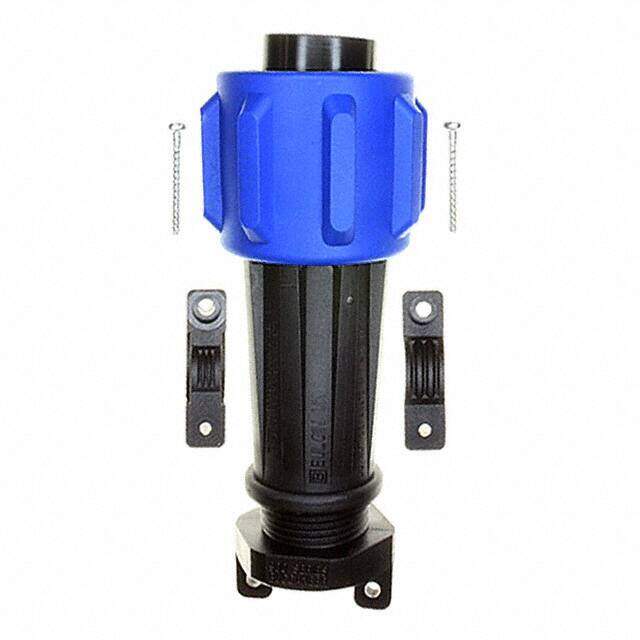

PXA911/07/P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG MALE 7POS NICKEL SCREW
PDF
/
Buying Options
Total Price: USD $127.92
Unit Price: USD $127.919617
≥1 USD $127.919617
≥10 USD $120.67888
≥100 USD $113.847994
≥500 USD $107.403771
≥1000 USD $101.324311
Inventory: 9391
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Brass
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Number of Pins 7
Shell Material Polyamide (PA), Nylon
Housing Material Polyamide
Weight 165.334419g
Body Material Nylon, Polyamide
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2002
Series Buccaneer? 900
Feature Backshell, Cable Clamp, Coupling Nut, UV Resistant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 7 (6 Power + PE)
Color Black, Blue
Voltage - Rated 430VAC/DC
Additional Feature STANDARD: UL 94V-0
HTS Code 8536.69.40.30
Fastening Type Threaded
Contact Finish - Mating Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Total Number of Contacts 7
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68/69K - Dust Tight, Water Resistant, Waterproof
Current Rating 32A
Voltage - Rated AC 600V
Approval Agency CSA, UL, VDE
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Contact Resistance 10mOhm
Insulation Resistance 5MOhm
Max Current Rating 32A
Number of Ports 1
Max Voltage Rating (DC) 430.43kV
Cable Opening 0.551 ~ 0.866 (14.00mm ~ 22.00mm)
Dimensions
Length 146mm
Width 46mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP68, Waterproof
