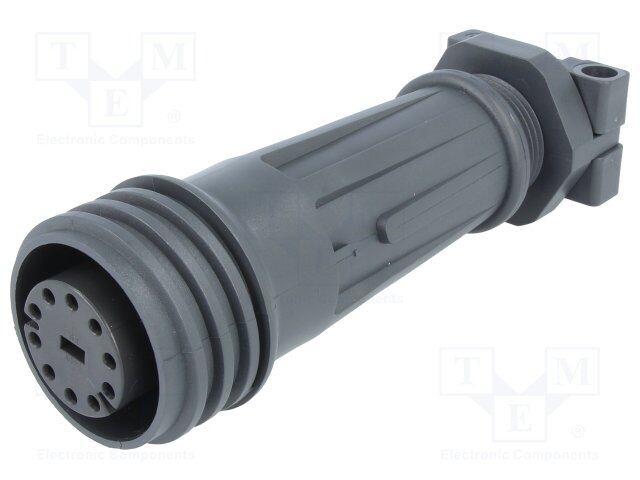

EXP-A921/10/S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Standard Circular Connector 10 POLE IN-LINE SKT ATEX ZONE 2 & 22
PDF
/
Inventory: 9841
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Contact Material Brass
Mounting Type Free Hanging (In-Line)
Number of Pins 10
Shell Material Polyester
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2015
Series EXPlora
Feature Backshell, Cable Clamp, UV Resistant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 10 (Power)
Color Black
Applications Industrial
Voltage - Rated 250VAC/DC
Additional Feature STANDARDS: IEC 60079-0; IEC 60079-15
Fastening Type Threaded
Contact Finish - Mating Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 10A
Total Number of Contacts 10
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.787 ~ 0.866 (20.00mm ~ 22.00mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
