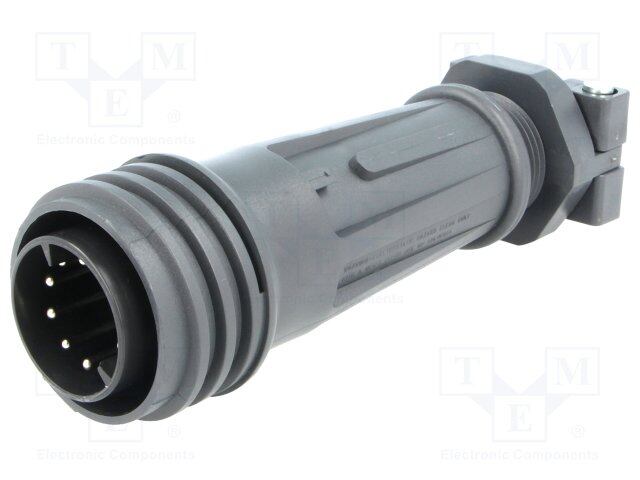

EXP-A921/10/P

Bulgin
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Standard Circular Connector 10 POLE IN-LINE PLUG ATEX ZONE 2 & 22
PDF
/
Inventory: 2091
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 24 Weeks

Physical

Contact Material Brass
Mounting Type Free Hanging (In-Line)
Number of Pins 10
Shell Material Polyester

Technical

Operating Temperature -20°C~55°C
Packaging Bulk
Published 2010
Series EXPlora
Feature Backshell, Cable Clamp, UV Resistant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Male Pins
Number of Positions 10 (Power)
Color Black
Applications Industrial
Voltage - Rated 250VAC/DC
Additional Feature STANDARDS: IEC 60079-0; IEC 60079-15
Fastening Type Threaded
Contact Finish - Mating Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 10A
Total Number of Contacts 10
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Backshell Type SOLID
Body/Shell Style PLUG
Cable Opening 0.787 ~ 0.866 (20.00mm ~ 22.00mm)

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
