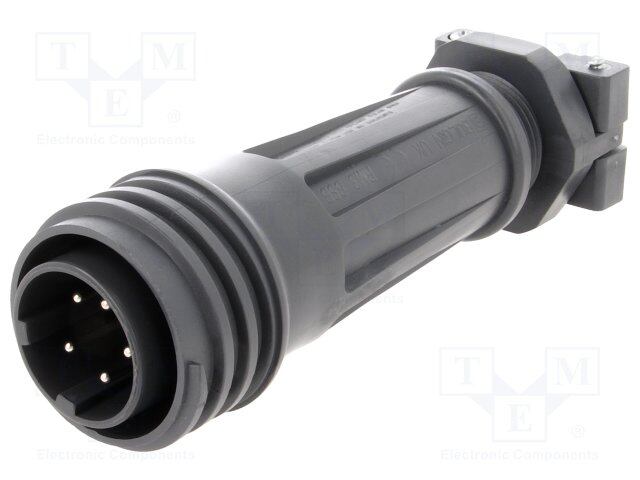

EXP-A921/05/P

Bulgin
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Standard Circular Connector 5 POLE IN-LINE PLUG ATEX ZONE 2 & 22
PDF
/
Inventory: 3209
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Technical

Cable Opening 0.787 ~ 0.866 (20.00mm ~ 22.00mm)
Body/Shell Style PLUG
Backshell Type SOLID
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Total Number of Contacts 5
Current Rating (Amps) 18A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Nickel
Fastening Type Threaded
Voltage - Rated 600VAC/DC
Applications Industrial
Color Black
Number of Positions 5 (4 Power + PE)
Connector Type Receptacle, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Cable Clamp, Trailing Neutral, UV Resistant
Series EXPlora
Published 2015
Packaging Bulk
Operating Temperature -20°C~55°C

Physical

Shell Material Polyester
Number of Pins 5
Mounting Type Free Hanging (In-Line)
Contact Material Brass

Supply Chain

Factory Lead Time 24 Weeks
