EXP-A911/07/S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

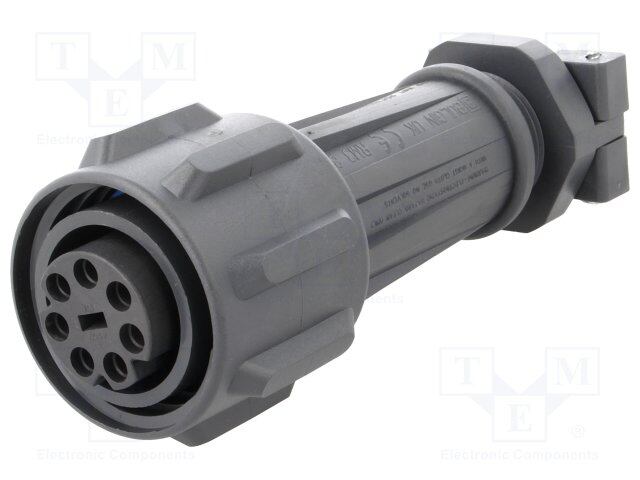

Standard Circular Connector 7 POLE FLEX SOCKET ATEX ZONE 2 & 22
PDF
/
Inventory: 4863
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Contact Material Brass
Mounting Type Free Hanging (In-Line)
Number of Pins 7
Shell Material Polyester
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2015
Series EXPlora
Feature Backshell, Cable Clamp, Coupling Nut, UV Resistant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Female Sockets
Number of Positions 7 (6 Power + PE)
Color Black
Applications Industrial
Voltage - Rated 430VAC/DC
Fastening Type Threaded
Contact Finish - Mating Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 16A
Total Number of Contacts 7
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.787 ~ 0.866 (20.00mm ~ 22.00mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
