EXP-0941/07/P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

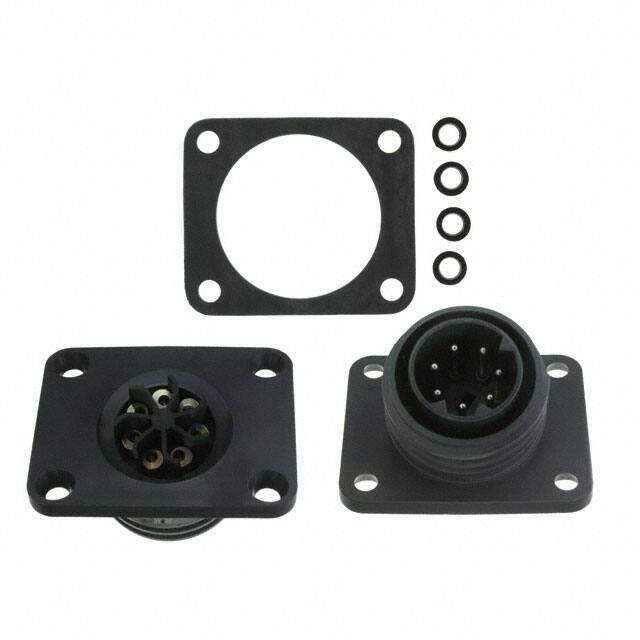

CONN RCPT MALE 7POS NICKEL SCREW
PDF
/
Inventory: 6459
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Contact Material Brass
Mount Cable, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Number of Pins 7
Shell Material Polyester
Housing Material PET
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2015
Series EXPlora
Feature UV Resistant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Male Pins
Number of Positions 7 (6 Power + PE)
Color Black
Applications Industrial
Voltage - Rated 430VAC/DC
Fastening Type Threaded
Contact Finish - Mating Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 7
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 16A
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Body/Shell Style PLUG
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP68, Waterproof
