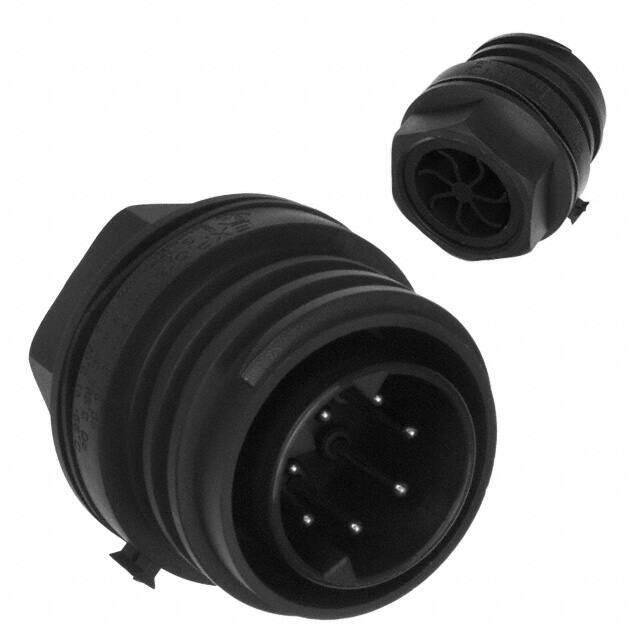

EXP-0931/07/P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 7POS NICKEL SCREW
PDF
/
Buying Options
Total Price: USD $72.43
Unit Price: USD $72.4328
≥1 USD $72.4328
≥10 USD $66.46992
≥100 USD $63.913696
≥500 USD $61.783216
≥1000 USD $58.374448
Inventory: 71
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Brass
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Number of Pins 7
Shell Material Polyester
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2010
Series EXPlora
Feature UV Resistant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Male Pins
Number of Positions 7 (6 Power + PE)
Color Black
Applications Industrial
Voltage - Rated 430VAC/DC
Fastening Type Threaded
Contact Finish - Mating Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 16A
Total Number of Contacts 7
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Backshell Type SOLID
Body/Shell Style PLUG
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
