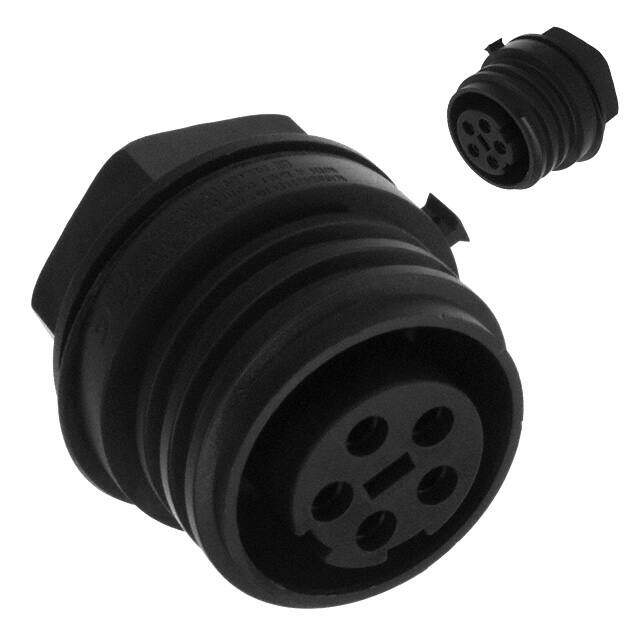

EXP-0931/05/S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 5POS SCREW
PDF
/
Inventory: 5433
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Backshell Type SOLID
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Total Number of Contacts 5
Current Rating (Amps) 18A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Nickel
Fastening Type Threaded
Voltage - Rated 600VAC/DC
Gender Receptacle
Applications Industrial
Color Black
Number of Positions 5 (4 Power + PE)
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Trailing Neutral, UV Resistant
Series EXPlora
Published 2015
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Shell Material Polyester
Number of Pins 5
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Contact Material Brass
Supply Chain
Factory Lead Time 20 Weeks
