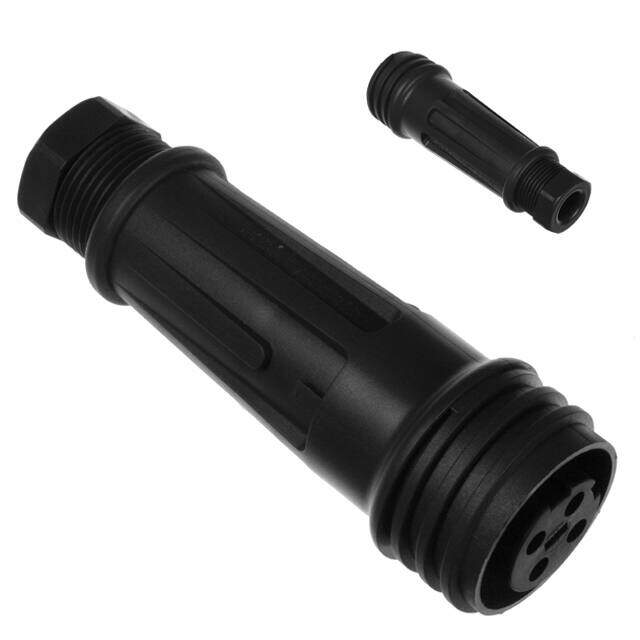

EXP-0921/04/S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 4POS SCREW
PDF
/
Buying Options
Total Price: USD $58.48
Unit Price: USD $58.484257
≥1 USD $58.484257
≥10 USD $55.173827
≥100 USD $52.050786
≥500 USD $49.104512
≥1000 USD $46.325006
Inventory: 7939
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Contact Material Brass
Mounting Type Free Hanging (In-Line)
Number of Pins 4
Shell Material Polyester
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2009
Series EXPlora
Feature Backshell, UV Resistant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 4 (3 Power + PE)
Color Black
Applications Industrial
Gender Receptacle
Voltage - Rated 600VAC/DC
Additional Feature STANDARDS: IEC 60079-0; IEC 60079-15
Fastening Type Threaded
Contact Finish - Mating Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 18A
Total Number of Contacts 4
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.512 ~ 0.591 (13.00mm ~ 15.00mm)
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
