1546347-1
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors - Backshells and Cable Clamps
Description

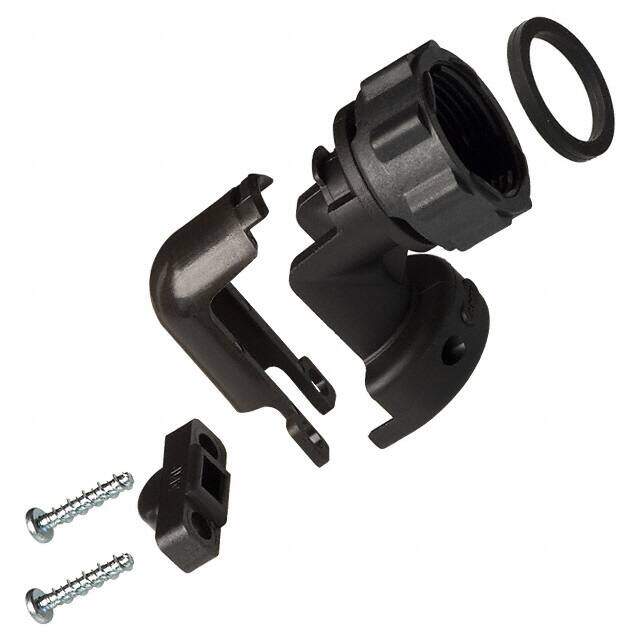

CONN BACKSHELL W/CLAMP SZ 11 BLK
PDF
/
Inventory: 4113
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Cable
Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2002
Series CPC
Feature Clamp Screws, Cover
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Backshell, Cable Clamp
Color Black
Depth 22.47mm
Shell Size - Insert 11
Cable Opening 0.329 (8.36mm)
Thread Size 5/8-24 UNEF
Wire/Cable Diameter 8.36 mm
Includes 6 pcs - 3 pc Cable Clamp, 1 Flat Ring, 2 Screws
Cable Exit 90°
Dimensions
Length 34.54mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
