A8504952S44N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors - Backshells and Cable Clamps
Description

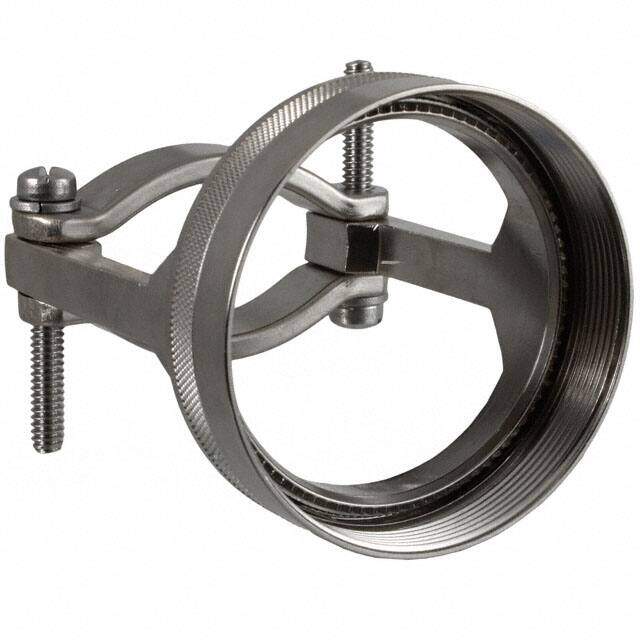

Backshell Cable Clamp Circular Connector
PDF
/
Inventory: 3942
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Cable
Material Aluminum Alloy
Technical
Series SAE AS85049
Feature Clamp Screws, Self-Locking
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Cable Clamp
Color Silver
Shell Size - Insert 44
Plating Electroless Nickel
Cable Opening 1.190 ~ 1.750 (30.23mm ~ 44.45mm)
Thread Size 2 3/4-16 UN
Cable Exit 180°
Dimensions
Diameter - Outside 3.140 (79.76mm)
Compliance
RoHS Status RoHS Compliant
