T 3484 002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

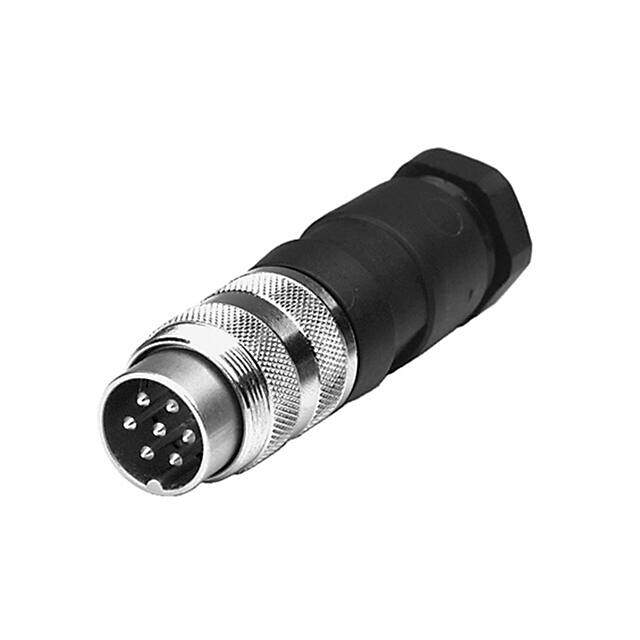

CONN PLUG MALE DIN 7POS SLDR CUP
PDF
/
Inventory: 5047
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material NOT SPECIFIED
Mounting Type Free Hanging (In-Line)
Shell Material Die Cast
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2007
Series C091A
Feature Cable Clamp, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 7
Voltage - Rated 250V
Fastening Type Threaded
Contact Finish - Mating Silver
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7A
Total Number of Contacts 7
Orientation Keyed
Shielding Shielded
Ingress Protection IP40
Shell Finish Nickel
Shell Size - Insert M16-7B
Empty Shell NO
Backshell Type SOLID
Compliance
RoHS Status ROHS3 Compliant
