T 3447 100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

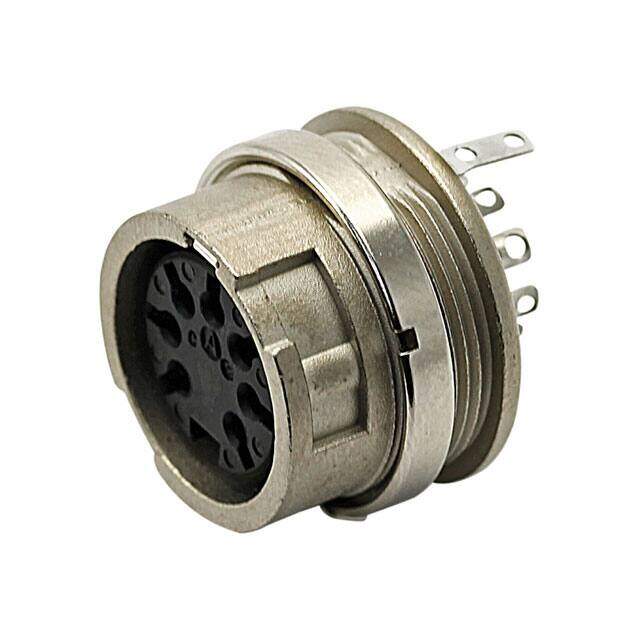

CONN RCPT FMALE DIN 7P SLDR CUP
PDF
/
Inventory: 4767
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Panel Mount
Shell Material Die Cast
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2005
Series C091B
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 7
Voltage - Rated 250V
Additional Feature EMI SHIELDED
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M16-7B
Shell Finish Nickel
Ingress Protection IP40
Orientation Keyed
Total Number of Contacts 7
Current Rating (Amps) 7A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Silver
Fastening Type Bayonet Lock
Compliance
RoHS Status ROHS3 Compliant
