T 3401 002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE DIN 6P SLDR CUP
PDF
/
Buying Options
Total Price: USD $14.26
Unit Price: USD $14.256
≥1 USD $14.256
≥10 USD $12.63504
≥100 USD $12.148928
≥500 USD $11.662816
≥1000 USD $11.014872
≥3000 USD $10.042982
Inventory: 218
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Durability 500 Cycles
Number of Ports 1
Polarization Key POLAR PIN POSITION
Insulation Resistance 10000000000Ohm
Contact Resistance 5mOhm
Contact Style BELLOWED TYPE
Backshell Type SOLID

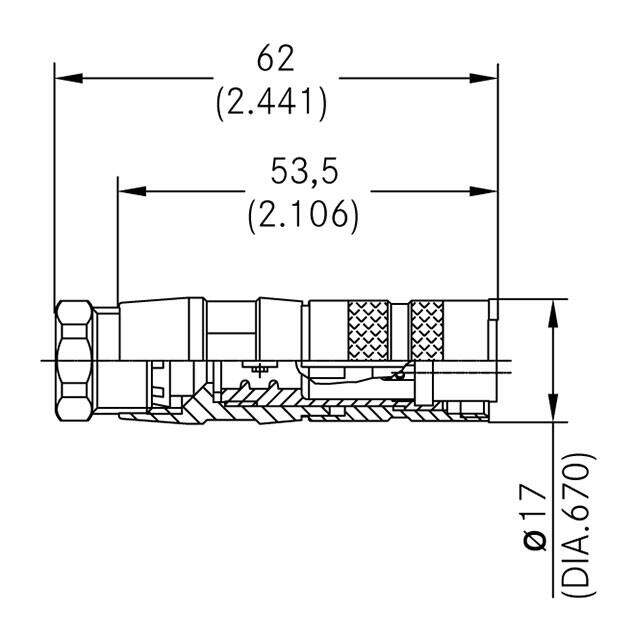

Body Depth 2.441 inch
Empty Shell NO
Reliability COMMERCIAL
Shell Size - Insert M16-6
Reference Standard UL
Shell Finish Nickel
Ingress Protection IP40
Shielding Shielded
Orientation Keyed
Total Number of Contacts 6
Current Rating (Amps) 7A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating Silver
Subcategory DIN Connectors
Fastening Type Threaded
Voltage - Rated 250V
Number of Positions 6
Connector Type Plug, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Cable Clamp, Strain Relief
Series C091A
Published 2007
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Mounting Option 2 SCREW
Mounting Option 1 LOCKING
Shell Material Die Cast
Insulation Material THERMOPLASTIC
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 12 Weeks
