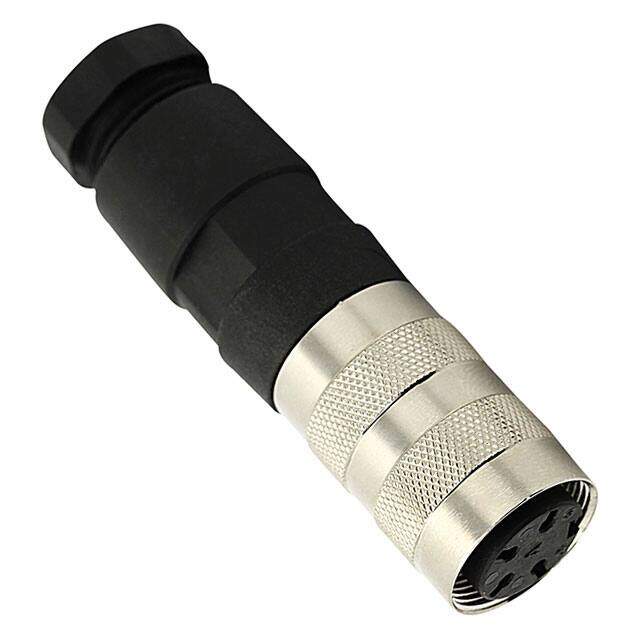

T 3301 028
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Nickel C091A ROHS3Compliant 2011 Circular Connector -40C~100C 10A 250V
PDF
/
Inventory: 5580
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M16-4
Shell Finish Nickel
Ingress Protection IP40
Shielding Shielded
Orientation Keyed
Total Number of Contacts 4
Current Rating (Amps) 10A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 250V
Color Silver
Number of Positions 4
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Cable Clamp, Strain Relief
Series C091A
Published 2011
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Shell Material Die Cast
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 12 Weeks
