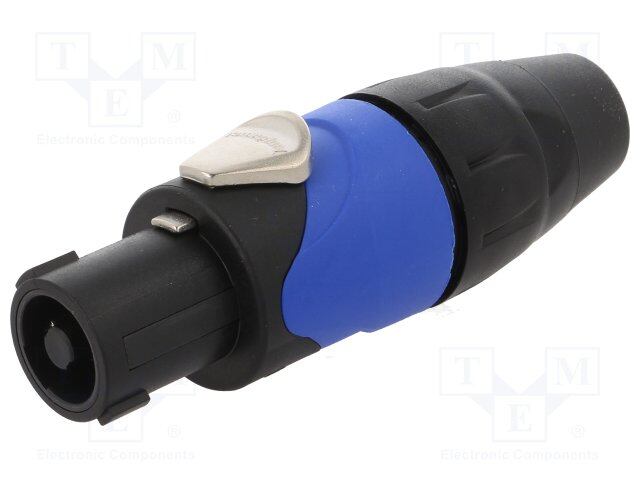

SP-4-FS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Loudspeaker Connectors 4P Cable Conn Solder Black/Blue Plastic
PDF
/
Buying Options
Total Price: USD $7.38
Unit Price: USD $7.3832
≥1 USD $7.3832
≥10 USD $6.64136
≥100 USD $6.2568
≥500 USD $6.096288
≥1000 USD $5.935864
≥3000 USD $5.29415
Inventory: 242
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Silver
Mount Cable
Mounting Type Free Hanging (In-Line)
Number of Pins 4
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Material Thermoplastic
Insert Material Polyamide (PA66), Nylon 6/6, Glass Filled
Backshell Material, Plating Polyamide (PA6), Nylon 6, Glass Filled
Technical
Operating Temperature -25°C~75°C
Published 2013
Series SP
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Non-Gendered
Number of Positions 4
Color Black
Applications Audio
Gender Female
Voltage - Rated 133V
Fastening Type Latch Lock
Contact Finish - Mating Silver
Current Rating (Amps) 30A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating 30A
Shell Finish Black
Number of Contacts 4
Cable Opening 0.354 ~ 0.551 (9.00mm ~ 14.00mm)
Compliance
Material Flammability Rating UL94 HB
Radiation Hardening No
RoHS Status ROHS3 Compliant
