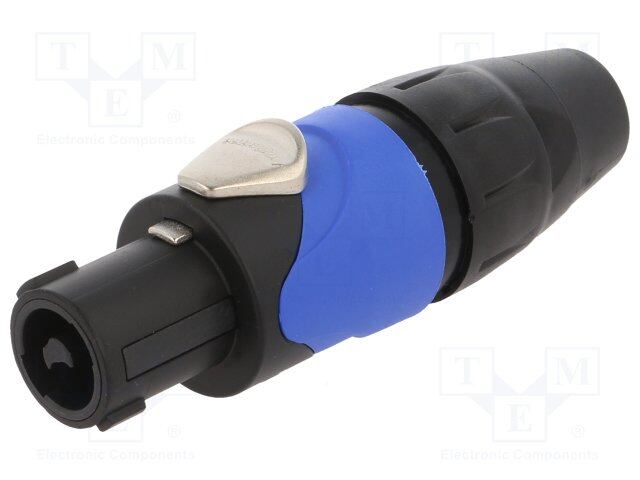

SP-2-FB
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description
Loudspeaker Connectors 2P Cable Conn Screw Black/Blue Metal
PDF
/
Inventory: 3774
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Silver
Mount Cable
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Number of Pins 2
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6, Glass Filled
Backshell Material, Plating Polyamide (PA6), Nylon 6, Glass Filled
Technical
Operating Temperature -25°C~75°C
Published 2013
Series SP
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Non-Gendered
Number of Positions 2
Color Black
Applications Audio
Gender Female
Voltage - Rated 133V
Fastening Type Latch Lock
Contact Finish - Mating Silver
Current Rating (Amps) 30A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating 30A
Shell Finish Black
Number of Contacts 2
Cable Opening 0.197 ~ 0.394 (5.00mm ~ 10.00mm)
Compliance
Material Flammability Rating UL94 HB
Radiation Hardening No
RoHS Status ROHS3 Compliant
