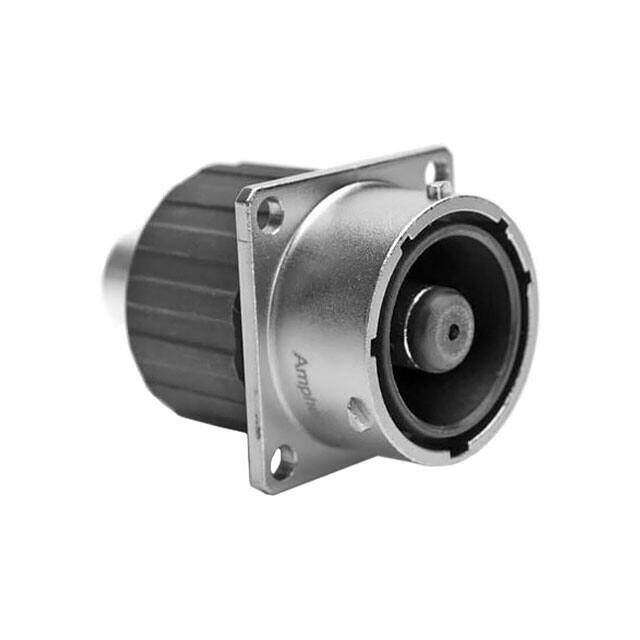

RTHP0201PN-50C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Conn;Circ;Recept;Male;Single Pole;10 mm;Crimp;RTHP/RT360 Series
PDF
/
Inventory: 2930
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Silver
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Number of Pins 1
Shell Material Zinc Die Cast
Housing Material Zinc
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series ecomate? RM - High Amperage
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle, Male Pins
Number of Positions 1
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Silver
Voltage - Rated 630VAC
Fastening Type Bayonet Lock
Contact Finish - Mating Silver
Current Rating (Amps) 180A
Orientation N (Normal)
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 180A
Shell Finish Nickel
Shell Size - Insert 20-1
Number of Contacts 1
Contact Gender Male
Plating Nickel
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
