RT0W61419PNH-K
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

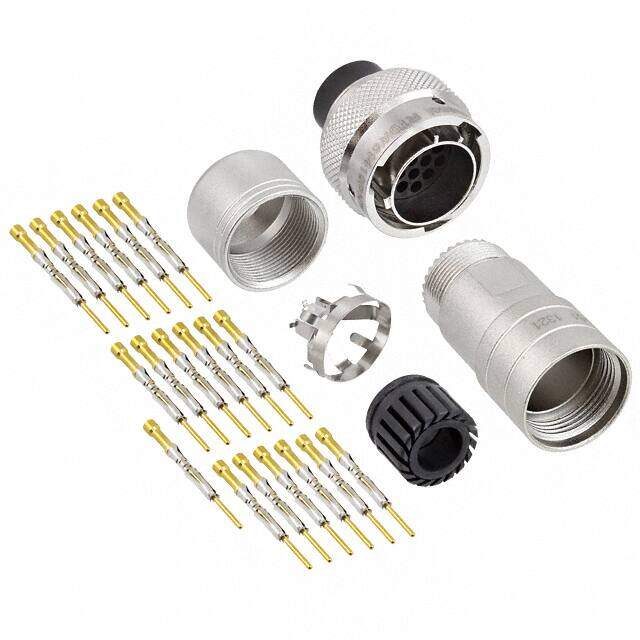

Standard Circular Connector Plug Pin 20Awg 19 Pin
PDF
/
Buying Options
Total Price: USD $51.59
Unit Price: USD $51.5856
≥1 USD $51.5856
≥10 USD $47.33608
≥100 USD $45.51536
≥500 USD $43.99824
≥1000 USD $41.57076
Inventory: 255
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Mating Flash
Technical
Wire/Cable Gauge 20 AWG
Contact Gender Male
Shell Size - Insert 14-19
Shell Finish Nickel
Current Rating 7.5A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation N (Normal)
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
HTS Code 8536.69.40.20
Voltage - Rated 150VAC/DC
Color Silver
Number of Positions 19
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ecomate? RM
Published 2013
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
