C01630D00611012
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Circular Connectors
Description

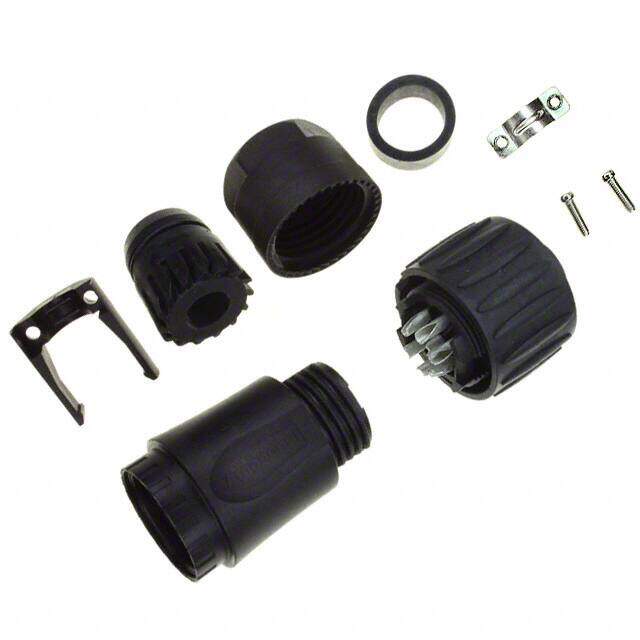

CONN PLUG FMALE 7POS SOLDER
PDF
/
Buying Options
Total Price: USD $15.17
Unit Price: USD $15.1712
≥1 USD $15.1712
≥10 USD $13.1516
≥100 USD $12.464672
≥500 USD $12.284096
≥1000 USD $10.83896
≥3000 USD $10.116339
Inventory: 540
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 73mm
Diameter 10mm
Technical
Wire/Cable Diameter 12.5 mm
Contact Gender Female
Number of Contacts 6
Approval Agency CSA, UL, VDE
Current Rating 10A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation Keyed
Current Rating (Amps) 12A
Contact Finish - Mating Silver
Fastening Type Threaded
Voltage - Rated 250V
Gender Receptacle
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 7
Connector Type Plug, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Cable Clamp, Strain Relief
Series ecomate? Plastic
Published 2012
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Body Material Nylon, Polyamide
Weight 40.020001g
Housing Material Polyamide
Shell Material Polyamide (PA), Nylon
Number of Pins 7
Package / Case SIL
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Silver
Contact Material Silver
Supply Chain
Factory Lead Time 12 Weeks
