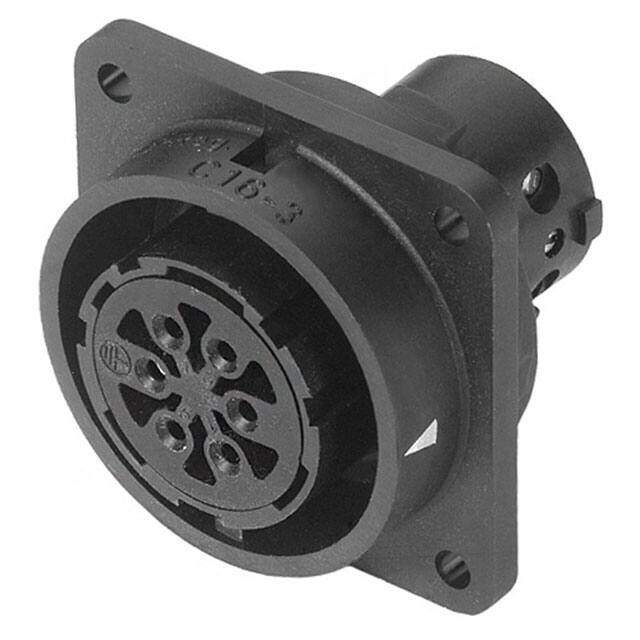

C01620G0051002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 6POS SCREW
PDF
/
Buying Options
Total Price: USD $43.74
Unit Price: USD $43.7448
≥1 USD $43.7448
≥10 USD $40.14032
≥100 USD $38.596096
≥500 USD $37.309536
≥1000 USD $35.251128
Inventory: 70
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Silver
Contact Plating Silver
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Number of Pins 6
Shell Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Body Material Nylon, Polyamide
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Series ecomate? C16
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 6 (5 + PE)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Black
Gender Receptacle
Voltage - Rated 400V
Fastening Type Bayonet Lock
Voltage - Rated DC 400V
Contact Finish - Mating Silver
Current Rating (Amps) 16A
Orientation Keyed
Ingress Protection IP65 - Dust Tight, Water Resistant
Depth 50mm
Current Rating 21A
Shell Size - Insert 2
Voltage - Rated AC 400V
Approval Agency CSA, UL, VDE
Number of Contacts 6
Contact Gender Female
Wire/Cable Gauge 10 AWG
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
