RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

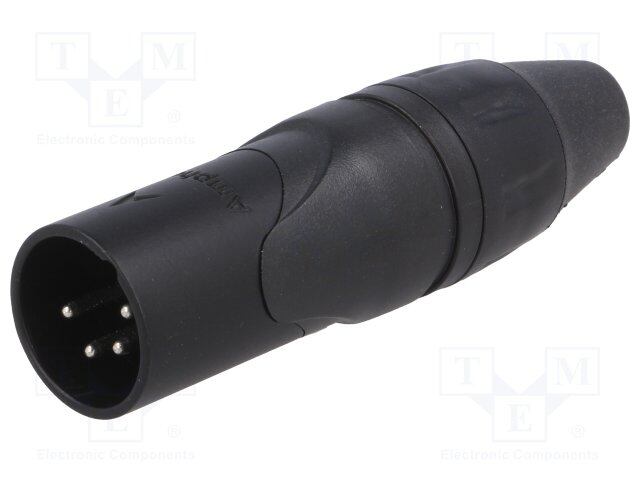

XLR Connectors MTL SH 4 ML BLK FINISH
PDF
/
Buying Options
Total Price: USD $10.04
Unit Price: USD $10.041059
≥1 USD $10.041059
≥200 USD $4.006971
≥400 USD $3.873055
≥800 USD $3.806097
Inventory: 2673
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 74mm
Diameter 21.2mm
Technical
Cable Opening 0.118 ~ 0.315 (3.00mm ~ 8.00mm)
Shell Size - Insert XLR
Shell Finish Black
Ingress Protection IP40
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 10A
Contact Finish - Mating Silver
Fastening Type Latch Holder
Gender Male
Applications Audio
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 75°C
Number of Positions 4
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Cable Clamp
Series AX
Published 2010
Packaging Bulk
Operating Temperature -25°C~75°C
Physical
Backshell Material, Plating Thermoplastic, Thermoplastic Rubber
Insert Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Material Zinc
Shell Material Zinc Die Cast
Number of Pins 4
Mounting Type Free Hanging (In-Line)
Mount Cable
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
