RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

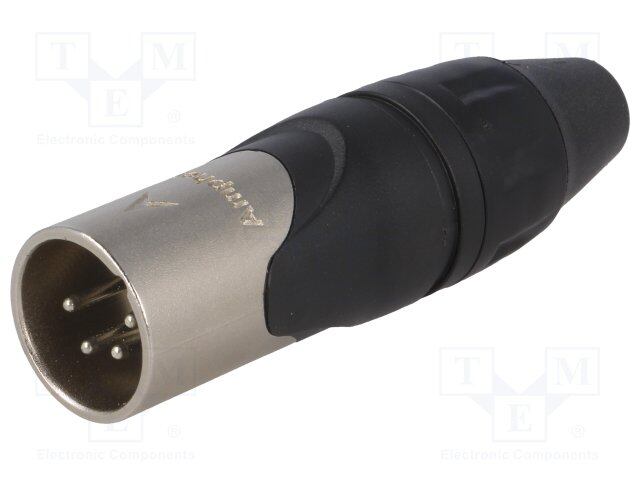

METAL XLR PLUG STR CORD 4 PIN
PDF
/
Buying Options
Total Price: USD $10.12
Unit Price: USD $10.119833
≥1 USD $10.119833
≥200 USD $4.03848
≥400 USD $3.903252
≥800 USD $3.836294
Inventory: 5457
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP40
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 74mm
Height 19mm
Diameter 21.2mm
Technical
Cable Opening 0.118 ~ 0.315 (3.00mm ~ 8.00mm)
Contact Resistance 3mOhm
Number of Contacts 4
Shell Size - Insert XLR
Shell Finish Nickel
Current Rating 10A
Ingress Protection IP40
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 10A
Contact Finish - Mating Silver
Fastening Type Latch Holder
Voltage - Rated 133V
Gender Male
Applications Audio
Color Silver
Min Operating Temperature -25°C
Max Operating Temperature 75°C
Number of Positions 4
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Cable Clamp
Series AX
Published 2005
Operating Temperature -25°C~75°C
Physical
Backshell Material, Plating Thermoplastic, Thermoplastic Rubber
Body Material Metal
Insert Material Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Material Zinc Die Cast
Number of Pins 4
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
