RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

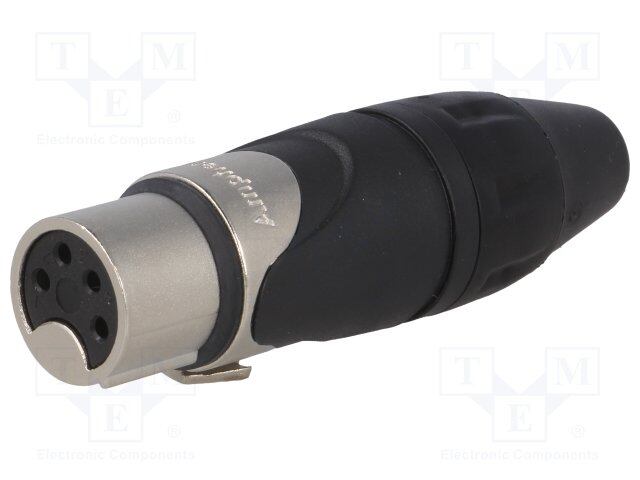

SOCKET, XLR, FREE, NICKEL, 4WAY
PDF
/
Buying Options
Total Price: USD $7.19
Unit Price: USD $7.1896
≥1 USD $7.1896
≥10 USD $6.49968
≥100 USD $6.140288
≥500 USD $5.990512
≥1000 USD $5.69096
≥3000 USD $5.091944
Inventory: 341
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Cable
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Number of Pins 4
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6, Glass Filled
Body Material Metal
Backshell Material, Plating Thermoplastic, Thermoplastic Rubber
Technical
Operating Temperature -25°C~75°C
Packaging Bulk
Published 2010
Series AX
Feature Backshell, Cable Clamp
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 4
Max Operating Temperature 75°C
Min Operating Temperature -25°C
Color Silver
Applications Audio
Gender Female
Fastening Type Latch Lock
Contact Finish - Mating Tin
Current Rating (Amps) 10A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP40
Current Rating 10A
Shell Finish Nickel
Shell Size - Insert XLR
Number of Contacts 4
Contact Resistance 3mOhm
Plating Nickel
Cable Opening 0.118 ~ 0.315 (3.00mm ~ 8.00mm)
Dimensions
Diameter 21.2mm
Height 19mm
Length 74mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP40
