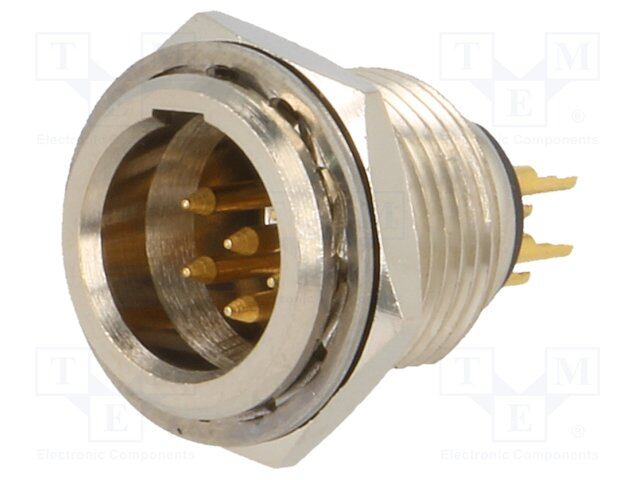

AG6MCC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Conn XLR Connector M 6 POS Solder ST Panel Mount 6 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $21.87
Unit Price: USD $21.870288
≥1 USD $21.870288
≥200 USD $8.726846
≥500 USD $8.435383
≥1000 USD $8.290964
Inventory: 3830
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 HB

Dimensions

Length 13.8mm
Diameter 12mm

Technical

Shell Size - Insert Mini XLR
Shell Finish Nickel
Ingress Protection IP40
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 1.2A
Contact Finish - Mating Gold
Fastening Type Latch Holder
Gender Male
Applications Audio
Color Silver
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Number of Positions 6
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AG
Published 2010
Operating Temperature -30°C~80°C

Physical

Insert Material Polyphenylene Sulfide (PPS)
Housing Material Zinc
Shell Material Brass
Number of Pins 6
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold, Silver
Contact Material Brass

Supply Chain

Factory Lead Time 12 Weeks
