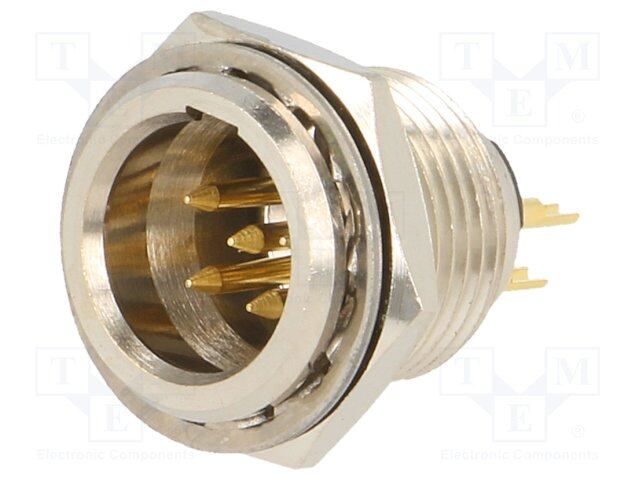

AG5MCC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
XLR Connectors CHASIS CONN CIR MTL 5 ML CONT NI PLTD
PDF
/
Buying Options
Total Price: USD $12.66
Unit Price: USD $12.660295
≥1 USD $12.660295
≥200 USD $5.052039
≥500 USD $4.882675
≥1000 USD $4.799962
Inventory: 3297
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 HB
Dimensions
Length 13.8mm
Diameter 12mm
Technical
Shell Size - Insert Mini XLR
Shell Finish Nickel
Ingress Protection IP40
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Fastening Type Latch Holder
Gender Male
Applications Audio
Color Silver
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Number of Positions 5
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AG
Published 2010
Operating Temperature -30°C~80°C
Physical
Insert Material Polyphenylene Sulfide (PPS)
Housing Material Zinc
Shell Material Brass
Number of Pins 5
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold, Silver
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
