AG5FCE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

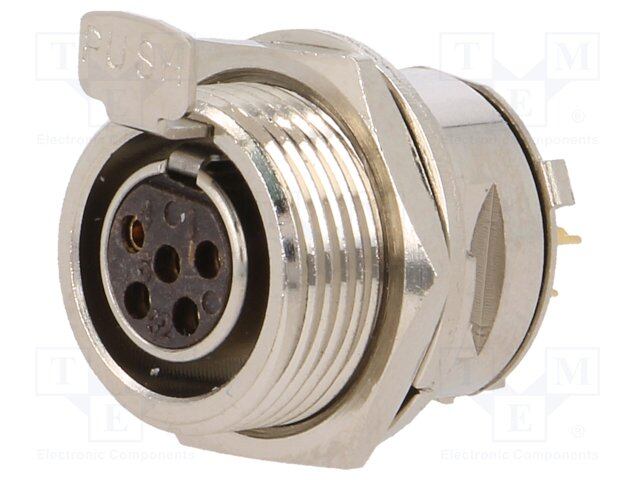

XLR Connectors MINI XLR 5 Pole Female Chassis NIC
PDF
/
Buying Options
Total Price: USD $23.09
Unit Price: USD $23.093911
≥1 USD $23.093911
≥200 USD $9.215245
≥500 USD $8.906714
≥1000 USD $8.754417
Inventory: 1392
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Gold, Silver
Mount Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Number of Pins 5
Shell Material Brass
Housing Material Bronze
Insert Material Polyphenylene Sulfide (PPS)
Technical
Operating Temperature -30°C~80°C
Packaging Bulk
Published 2012
Series AG
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 5
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Color Silver
Applications Audio
Gender Female
Voltage - Rated 1kV
Fastening Type Latch Lock
Contact Finish - Mating Gold
Current Rating (Amps) 5A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP40
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert Mini XLR
Plating Nickel
Dimensions
Length 14.4mm
Compliance
Material Flammability Rating UL94 HB
RoHS Status ROHS3 Compliant
