RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

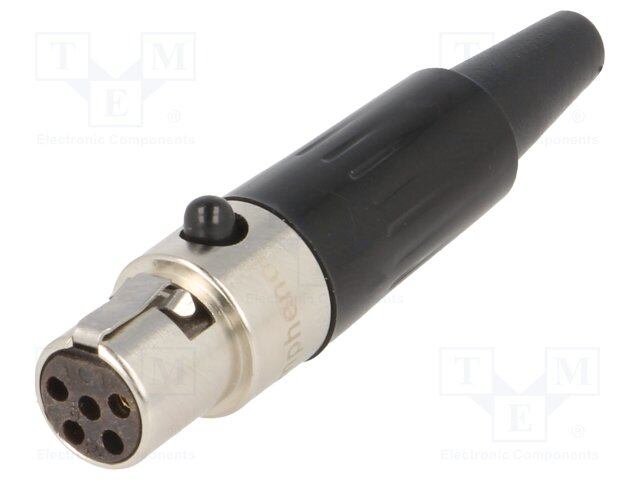

XLR Connectors 5 FEM CONT NI PLTD
PDF
/
Buying Options
Total Price: USD $5.95
Unit Price: USD $5.9488
≥1 USD $5.9488
≥10 USD $5.3548
≥100 USD $5.04416
≥500 USD $4.914624
≥1000 USD $4.785352
≥3000 USD $4.554
Inventory: 995
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 HB
Dimensions
Length 49mm
Diameter 10.8mm
Technical
Cable Opening 0.138 (3.50mm)
Shell Size - Insert Mini XLR
Shell Finish Nickel
Ingress Protection IP40
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Fastening Type Latch Lock
Gender Receptacle
Applications Audio
Color Silver
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Number of Positions 5
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Cable Clamp
Series AG
Published 2010
Operating Temperature -30°C~80°C
Physical
Backshell Material, Plating Polyacrylonitrile Butadiene Styrene (ABS)
Insert Material Polyphenylene Sulfide (PPS)
Housing Material Zinc
Shell Material Brass
Number of Pins 5
Mounting Type Free Hanging (In-Line)
Mount Cable
Contact Plating Gold, Silver
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
