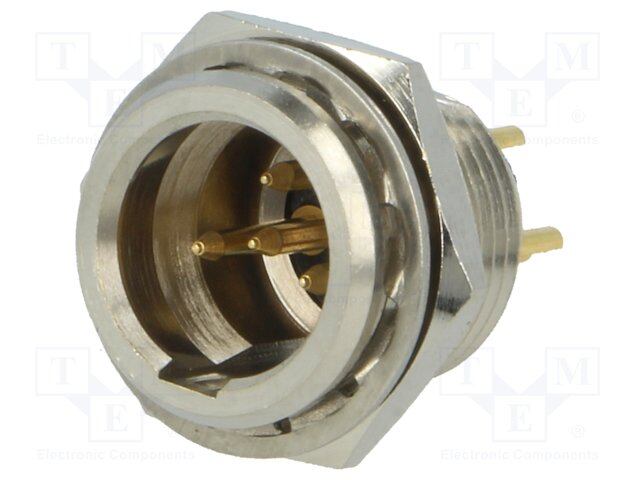

AG4MCC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Conn XLR Connector M 4 POS Solder ST Panel Mount 4 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $6.36
Unit Price: USD $6.3624
≥1 USD $6.3624
≥10 USD $5.72968
≥100 USD $5.397216
≥500 USD $5.25888
≥1000 USD $5.120544
≥3000 USD $4.873018
Inventory: 1031
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Gold, Silver
Mount Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Number of Pins 4
Shell Material Brass
Housing Material Zinc
Insert Material Polyphenylene Sulfide (PPS)
Technical
Operating Temperature -30°C~80°C
Published 2010
Series AG
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 4
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Color Silver
Applications Audio
Gender Male
Fastening Type Latch Holder
Contact Finish - Mating Gold
Current Rating (Amps) 5A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP40
Shell Finish Nickel
Shell Size - Insert Mini XLR
Dimensions
Diameter 12mm
Length 13.8mm
Compliance
Material Flammability Rating UL94 HB
RoHS Status ROHS3 Compliant
