Category Connectors, Interconnects / Circular Connectors

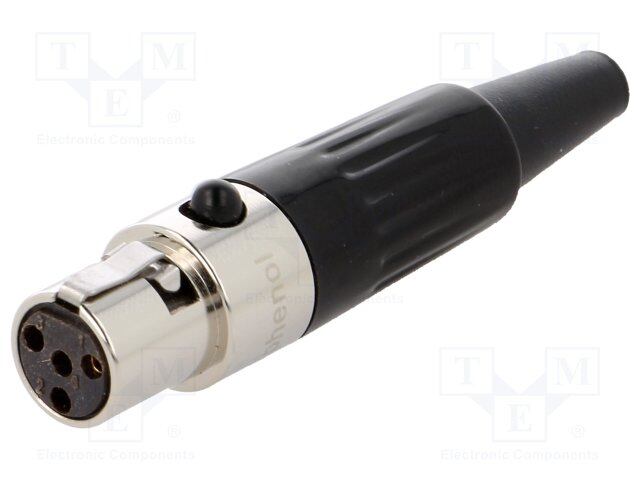

Description XLR Connectors 4 FEM CONT NI PLTD
PDF
/
Buying Options
Total Price: USD $9.61
Unit Price: USD $9.6096
≥1 USD $9.6096
≥10 USD $8.64688
≥100 USD $8.145984
≥500 USD $7.936896
≥1000 USD $7.72816
≥3000 USD $6.892653
Inventory: 1262
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 HB

Dimensions

Length 49mm
Diameter 10.8mm

Technical

Cable Opening 0.138 (3.50mm)
Shell Size - Insert Mini XLR
Shell Finish Nickel
Ingress Protection IP40
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 5A
Contact Finish - Mating Gold
Fastening Type Latch Lock
Gender Receptacle
Applications Audio
Color Silver
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Number of Positions 4
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Cable Clamp
Series AG
Published 2010
Operating Temperature -30°C~80°C

Physical

Backshell Material, Plating Polyacrylonitrile Butadiene Styrene (ABS)
Insert Material Polyphenylene Sulfide (PPS)
Housing Material Zinc
Shell Material Brass
Number of Pins 4
Mounting Type Free Hanging (In-Line)
Mount Cable
Contact Plating Gold, Silver
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 12 Weeks
