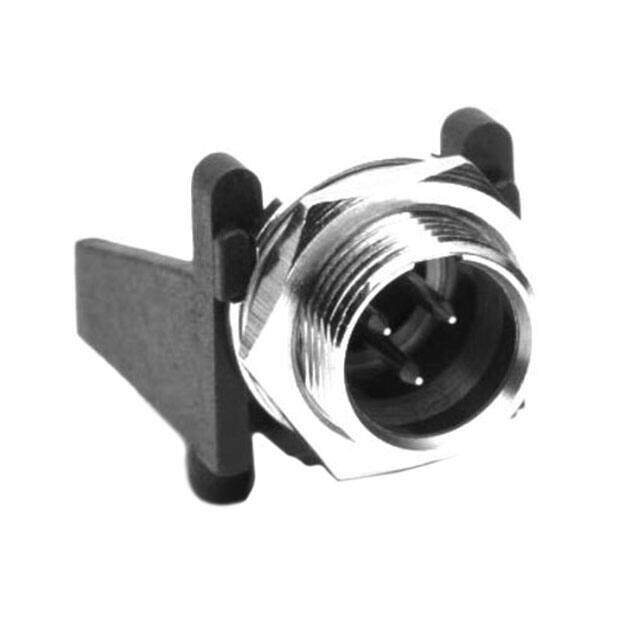

AG3MCCH image
Favorite
AG3MCCH image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description 3 Position Right Angle Bulkhead IP40 Mini XLR Male Pin Receptacle Connector
PDF
/
Buying Options
Total Price: USD $10.12
Unit Price: USD $10.12
≥1 USD $10.12
≥10 USD $9.10712
≥100 USD $8.579296
≥500 USD $8.35912
≥1000 USD $8.139208
≥3000 USD $7.259261
Inventory: 1054
Minimum: 1
-
+

Technical Details

Technical

Fastening Type Latch Holder
Contact Finish - Mating Gold
Current Rating (Amps) 5A
Orientation Keyed
Ingress Protection IP40
Current Rating 5A
Shell Finish Nickel
Shell Size - Insert Mini XLR
Number of Contacts 3
Plating Nickel
Gender Male
Color Silver
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Number of Positions 3
Connector Type Receptacle, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Board Guide
Series AG
Published 2014
Packaging Bulk
Operating Temperature -30°C~80°C

Dimensions

Height 14.8mm
Length 15.5mm

Compliance

RoHS Status ROHS3 Compliant

Physical

Housing Material Zinc
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Silver
Contact Material Gold, Silver

Supply Chain

Factory Lead Time 12 Weeks
