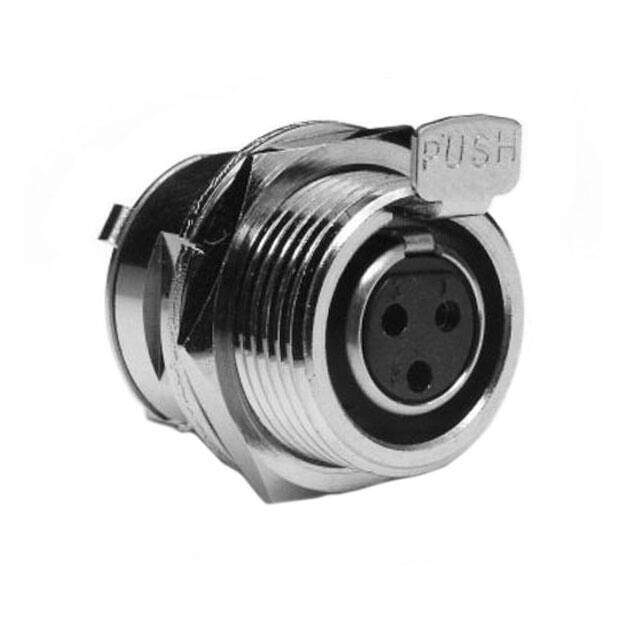

AG3FCE image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN PLUG FM MINI XLR 3P SDR CUP
PDF
/
Buying Options
Total Price: USD $21.01
Unit Price: USD $21.007713
≥1 USD $21.007713
≥200 USD $8.382867
≥500 USD $8.103219
≥1000 USD $7.964051
Inventory: 2275
Minimum: 1
-
+

Technical Details

Technical

Min Operating Temperature -30°C
Max Operating Temperature 80°C
Number of Positions 3
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Ground
Series AG
Published 2012
Packaging Bulk
Operating Temperature -30°C~80°C
Plating Nickel
Shell Size - Insert Mini XLR
Shell Finish Nickel
Current Rating 5A
Ingress Protection IP40
Orientation Keyed
Current Rating (Amps) 5A
Contact Finish - Mating Gold
Fastening Type Latch Lock
Voltage - Rated 1kV
Gender Female
Color Silver

Physical

Housing Material Bronze
Shell Material Brass
Number of Pins 3
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold, Silver
Contact Material Brass

Supply Chain

Factory Lead Time 12 Weeks

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Length 14.4mm
