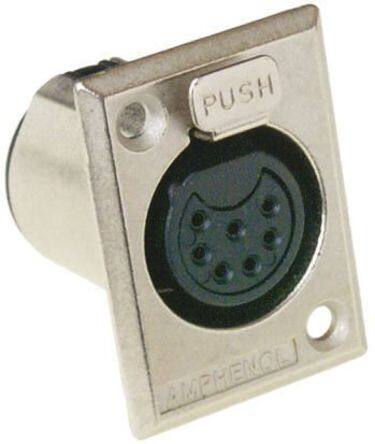

AC7FPZ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
XLR Connectors FML SKT 7 CONT NICKEL PLTD
PDF
/
Buying Options
Total Price: USD $31.2
Unit Price: USD $31.19713
≥1 USD $31.19713
≥200 USD $12.448918
≥400 USD $12.032729
≥1000 USD $11.826603
Inventory: 5883
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 27.2mm
Technical
Plating Nickel
Number of Contacts 3
Shell Size - Insert XLR
Shell Finish Nickel
Current Rating 5A
Ingress Protection IP40
Shielding Shielded
Orientation Keyed
Current Rating (Amps) 5A
Contact Finish - Mating Gold
Fastening Type Latch Lock
Voltage - Rated 133V
Gender Female
Applications Audio
Color Silver
Min Operating Temperature -25°C
Max Operating Temperature 75°C
Number of Positions 7
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Ground
Series AC Z
Published 2009
Operating Temperature -25°C~75°C
Physical
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Feature Flange
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold, Silver
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
