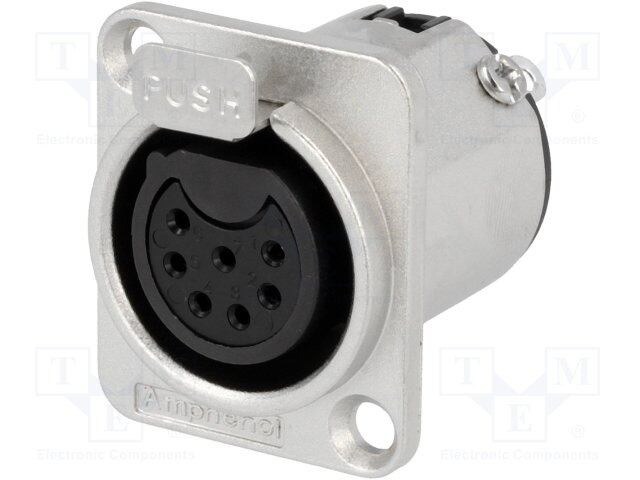

AC7FDZ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
XLR Connectors FML SKT 7 CONT NICKEL PLTD
PDF
/
Buying Options
Total Price: USD $30.71
Unit Price: USD $30.711357
≥1 USD $30.711357
≥200 USD $12.254609
≥400 USD $11.844984
≥1000 USD $11.642797
Inventory: 7784
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount
Mounting Feature Flange
Number of Pins 7
Shell Material Zinc Die Cast
Housing Material Zinc
Technical
Operating Temperature -25°C~75°C
Published 2006
Series AC Z
Feature Ground
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 7
Max Operating Temperature 75°C
Min Operating Temperature -25°C
Color Silver
Applications Audio
Gender Female
Voltage - Rated 133V
Fastening Type Latch Lock
Contact Finish - Mating Gold
Current Rating (Amps) 5A
Orientation Keyed
Shielding Shielded
Ingress Protection IP40
Current Rating 5A
Shell Finish Nickel
Shell Size - Insert XLR
Number of Contacts 3
Plating Nickel
Dimensions
Length 26mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
