AC6AFPZ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

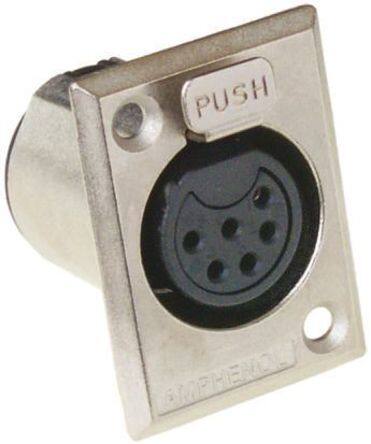

Amphenol 6 Way Panel Mount XLR Connector, Female, Silver Plated Contacts
PDF
/
Buying Options
Total Price: USD $28.14
Unit Price: USD $28.140699
≥1 USD $28.140699
≥200 USD $11.227921
≥400 USD $10.853744
≥1000 USD $10.667313
Inventory: 6270
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Zinc Die Cast
Housing Material Zinc
Technical
Operating Temperature -25°C~75°C
Packaging Bulk
Published 2009
Series AC Z
Feature Ground
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 6
Max Operating Temperature 75°C
Min Operating Temperature -25°C
Color Silver
Applications Audio
Gender Female
Fastening Type Latch Lock
Contact Finish - Mating Tin
Current Rating (Amps) 7.5A
Orientation Keyed
Shielding Shielded
Ingress Protection IP40
Current Rating 7.5A
Shell Finish Nickel
Shell Size - Insert XLR
Number of Contacts 3
Dimensions
Length 27.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
