AC5MJ image
Favorite
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / Circular Connectors

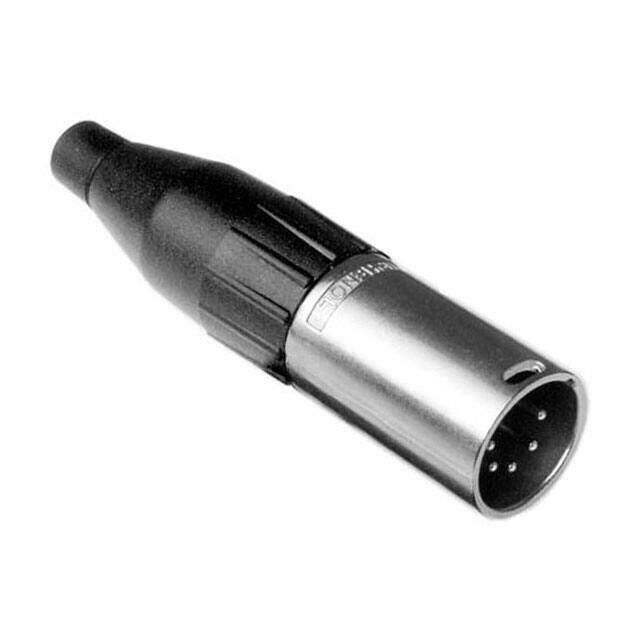

Description XLR Connectors METAL PLUG CABLE 5 PIN LRG CLAMP
PDF
/
Buying Options
Total Price: USD $7.73
Unit Price: USD $7.7264
≥1 USD $7.7264
≥10 USD $6.95464
≥100 USD $6.551424
≥500 USD $6.383344
≥1000 USD $6.215352
≥3000 USD $5.543446
Inventory: 333
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Dimensions

Length 82mm
Diameter 19mm

Technical

Number of Poles 5
Number of Ports 1
Max Current Rating 7.5A
Max Voltage Rating (AC) 133V
Number of Contacts 3
Shell Size - Insert XLR
Shell Finish Nickel
Current Rating 7.5A
Reach Compliance Code unknown
Ingress Protection IP40
Orientation Keyed
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Silver
Voltage - Rated DC 133V
Fastening Type Latch Holder
Voltage - Rated 133V
Gender Male
Connector Type Receptacle, Male Pins
Termination Solder Cup
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Backshell, Cable Clamp
Series AC
Published 2006
Packaging Bulk
Operating Temperature -25°C~75°C

Physical

Housing Material Zinc
Shell Material Zinc Die Cast
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable
Contact Material Bronze

Supply Chain

Factory Lead Time 12 Weeks
