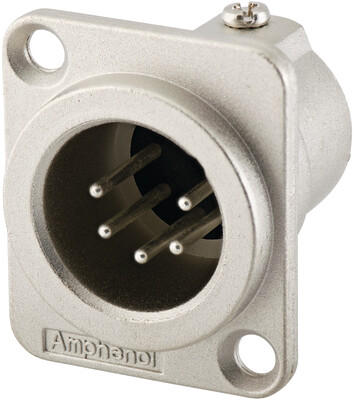

AC5MDZ image
Favorite
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description PLUG, XLR, PANEL, UNIFIED, 5POLE
PDF
/
Buying Options
Total Price: USD $5.77
Unit Price: USD $5.7728
≥1 USD $5.7728
≥10 USD $5.19904
≥100 USD $4.897728
≥500 USD $4.77224
≥1000 USD $4.646664
≥3000 USD $4.422
Inventory: 313
Minimum: 1
-
+

Technical Details

Compliance

Ratings IP40
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Length 26mm
Height 31mm

Technical

Number of Ports 1
Plating Nickel
Insulation Resistance 1GOhm
Contact Resistance 3mOhm
Number of Contacts 5
Voltage - Rated AC 50V
Shell Size - Insert XLR
Shell Finish Nickel
Current Rating 7.5A
Ingress Protection IP40
Shielding Shielded
Orientation Keyed
Current Rating (Amps) 7.5A
Contact Finish - Mating Silver
Voltage - Rated DC 133V
Fastening Type Push-Pull
Voltage - Rated 133V
Gender Male
Applications Audio
Color Silver
Min Operating Temperature -25°C
Max Operating Temperature 75°C
Number of Positions 5
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Ground
Series AC Z
Published 2000
Operating Temperature -25°C~75°C

Physical

Body Material Metal
Shell Material Zinc Die Cast
Number of Pins 5
Mounting Feature Flange
Package / Case Metal
Mounting Type Panel Mount
Mount Panel
Contact Plating Silver
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 12 Weeks
