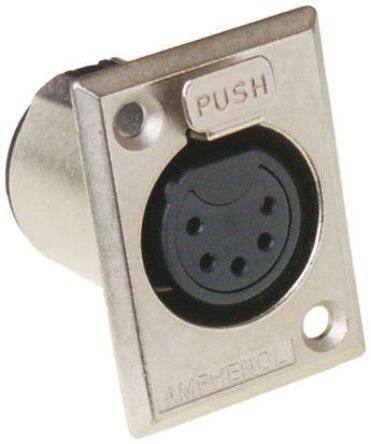

AC5FPZ
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description
XLR Connectors METAL PLUG 5 POS NICKEL
PDF
/
Buying Options
Total Price: USD $10.66
Unit Price: USD $10.6568
≥1 USD $10.6568
≥10 USD $9.44592
≥100 USD $9.082304
≥500 USD $8.71904
≥1000 USD $8.234688
≥3000 USD $7.508134
Inventory: 107
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Panel
Mounting Type Panel Mount
Package / Case Metal
Mounting Feature Flange
Number of Pins 5
Shell Material Zinc Die Cast
Housing Material Zinc
Technical
Operating Temperature -25°C~75°C
Packaging Bulk
Published 2009
Series AC Z
Feature Ground
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 5
Max Operating Temperature 75°C
Min Operating Temperature -25°C
Color Silver
Applications Audio
Gender Female
Voltage - Rated 133V
Fastening Type Latch Lock
Contact Finish - Mating Tin
Current Rating (Amps) 7.5A
Orientation Keyed
Shielding Shielded
Ingress Protection IP40
Depth 34.1mm
Current Rating 7.5A
Shell Finish Nickel
Shell Size - Insert XLR
Number of Contacts 5
Max Current Rating 7.5A
Plating Nickel
Number of Ports 1
Dimensions
Length 27.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
