AC5FBJ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

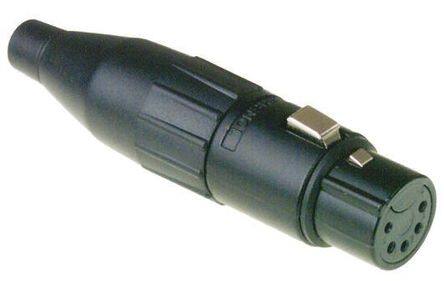

Amphenol 5 Way Cable Mount XLR Connector, Female, Silver Plated Contacts, 133 V ac
PDF
/
Buying Options
Total Price: USD $18.7
Unit Price: USD $18.703573
≥1 USD $18.703573
≥300 USD $7.463837
≥600 USD $7.214386
≥900 USD $7.090973
Inventory: 4489
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Silver, Tin
Mount Cable
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material PET
Backshell Material, Plating Polyphenylene Ether (PPE)
Technical
Operating Temperature -25°C~75°C
Published 2006
Series AC
Feature Backshell, Cable Clamp
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 5
Max Operating Temperature 75°C
Min Operating Temperature -25°C
Color Black
Applications Audio
Gender Female
Voltage - Rated 133V
Fastening Type Latch Lock
Contact Finish - Mating Silver
Current Rating (Amps) 7.5A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP40
Current Rating 15A
Shell Finish Black
Shell Size - Insert XLR
Number of Contacts 3
Cable Opening 0.256 ~ 0.315 (6.50mm ~ 8.00mm)
Dimensions
Diameter 19mm
Length 82mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
